| Authentication: |
|
Model |
|

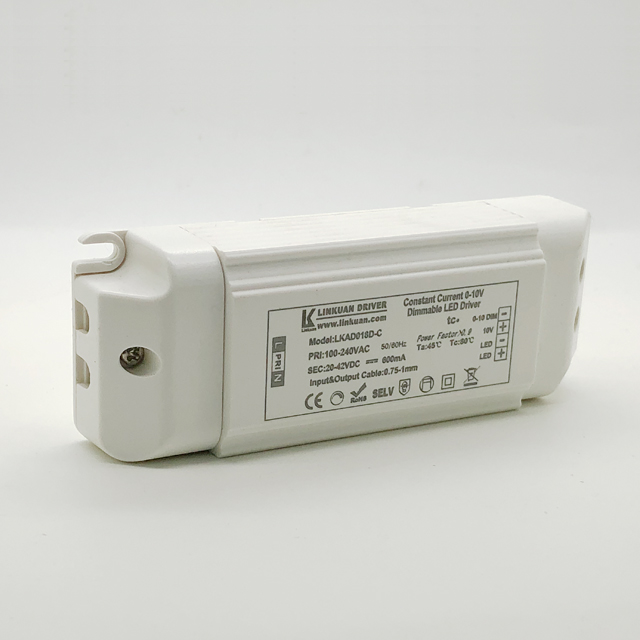

LKAD018D-L |
備注 |
|
輸入Input |
輸入電壓范圍/Input Voltage |
100-240V |
|
|
頻率/Frequency |
50/60hz |
|
|
|
諧波/THD |
≤15% |
|
|
|
功率因數(shù)/Power factor |
0.95/240VAC |
|
|
|
輸入電流 Input current（mA |
64MA |
|
|
|
待機功耗 stand_by power |
≦0.8W |
|
|
|
浪涌電流 Inrush Current(Ma |
≤30A@230VAC |
|
|
|
漏電流 Leakage Current |
<1MA/240V |
|
|
|
輸出Output |
額定電壓/Rated voltage |
40V |
|
|
空載電壓/No-load Voltage |
≦46V |
|
|
|
工作電壓范圍/working volta |
20-42V |
|
|
|
可選擇電流規(guī)格/selectable |
300MA |
|
|
|
電流精度/Current precision |
(+/-)3% |
|
|
|
額定功率/Rated power |
12W |
|
|
|
開機延時/Setup Time |
≤0.5s/240VAC |
|
|
|
輸出線性調整率Output Line |
±5% |
|
|
|
溫度漂移temperature drift |
±10% Page 1 of 5 |
|
|
保護特性 |
開路保護Output open circui |
有/Enable |
|
|
短路保護Short Circuit Prot |
打嗝模式/Hiccup mode |
|
|
|
使用環(huán)境Environment Requirements |
工作溫度/濕度要求Operating Temp./RH |
-30～+45℃/20～95% |
|
|
儲存溫度,濕度要求Storage Temp./RH |
-40～+80℃/10～95% |
|
|
|
安全和電磁兼容 Safety & EMC |
認證編號/Certificate |
符合CE/ meet CE |
|
|
耐壓 withstand voltage |
3750VAC/60S |
|
|
|
絕緣阻抗insulation resista |
500V>100M |
|
|
|
浪涌等級EMS immunity |
IEC6100-4-5(L-N:1KV) |
|
|
|
安規(guī)標準Safety standard |
EN61347,GB19510 |
|
|
|
電磁干擾electromagnetic in |
EN55015,EN61000-3-2 |
|
|
|
電磁抗干擾Electromagnetic |
EN61000-4-2.3.4.5.6.8.11.EN61547 |
|
|
|
其他Others |
IP等級說明 IP level descri |
IP20 |
|
|
質保說明Warranty instructi |
3年/3 years |
|
|
|
尺寸/Size |
122*45*26MM |
|
|
|
重量/Netweight |
100g |
|
